Description

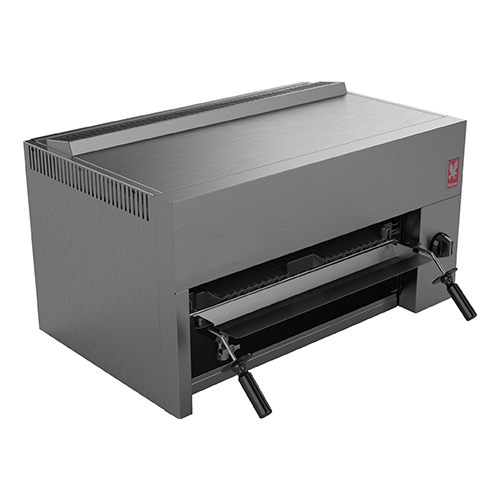

With three capable gas burners and a variable brander height, the G2522 is designed to function in the busiest of kitchen conditions.
Three high-power gas burners deal with nonstop throughput in crowded kitchens.
Variable brander height allows for versatile cooking control.
Comes with aluminium brander, grid shelf, and drip tray, all as standard; no need to purchase as extras.
Installation notes
Adequate ventilation, whether natural or mechanical, must be provided to supply sufficient fresh air for combustion
and to allow easy removal of such products that may present risk to health. Recommendations for ventilation of
appliances are given in BS5440:2 and HVCA specification DW/172. For multiple installations, requirements for
individual appliances should be added together. Installation of any such system must be completed in accordance
with local and/or national regulations that apply at time of commissioning.
Install level in a well-lit and draught-free position. All round clearance of 150mm is necessary from any combustible
wall or object liable to damage from overheating. Minimum vertical clearance of 550mm in still air above flue top
edge is necessary to ensure overlying surfaces do not overheat. Minimum clearance of 400mm from any adjacent
wall at RH side is needed to allow removal of panel for service access. LH side will become very hot. Position to
minimise risk of accidental touching. Unit can be also mounted upon non-combustible bench legs, floor stand or wall
brackets, never directly upon a table top.
